Constructing a Line Graph

How to Construct a Line Graph in GeoGebra

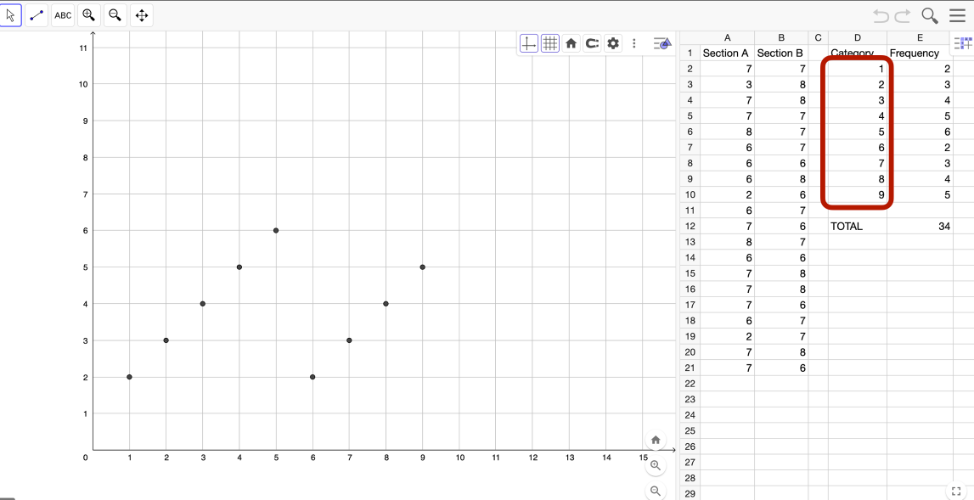

Step 1: Determine the categories you will use in organizing the data. Input it in the column for Category. (See Figure 1).

[center][i][/i][/center][size=100][center][i][/i][i]Figure 1[/i][/center][/size] — *Figure 1*

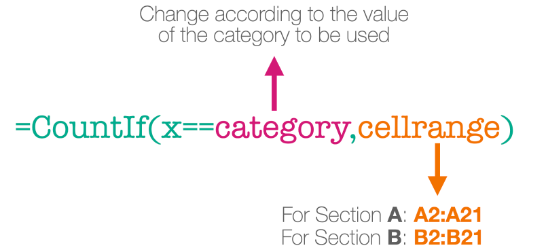

Step 2: To determine the count for each category, click the cell beside your category, then input this command. (See Figure 2)

[center][i][/i][/center][size=100][center][i][/i][i]Figure 2[/i][/center][/size] — *Figure 2*

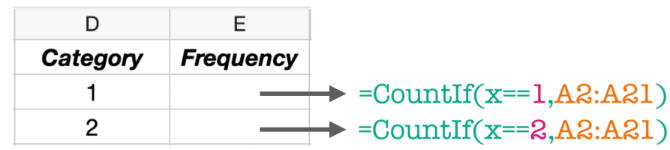

For example, to determine the count of 1 in Section A and count of 2 in Section A, use these commands (See Figure 3)

[center][i][/i][/center][size=100][center][i][/i][i]Figure 3[/i][/center][/size] — *Figure 3*

Step 3: Connect the points using the Segment tool. Click first in the Graphics view, then select the Segment tool and click on the two points to be connected.

Optional

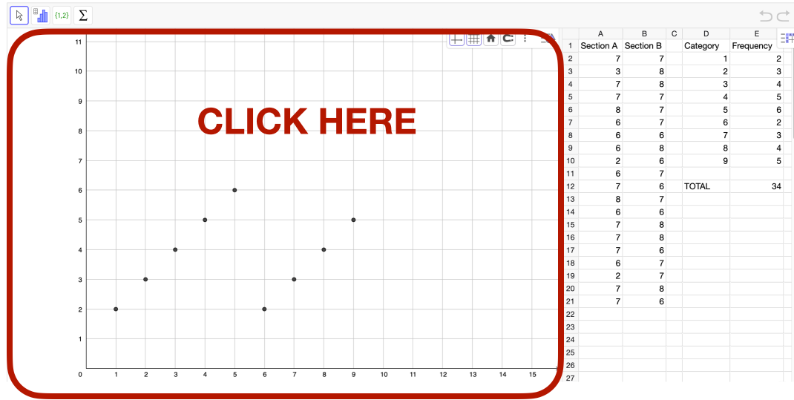

Click on the Graphics view, the left side view (See Figure 4), and click Text tool. Then, type the text (See Figure 5).

[center][i][/i][/center][size=100][center][i][/i][i]Figure 4[/i][/center][/size] — *Figure 4*

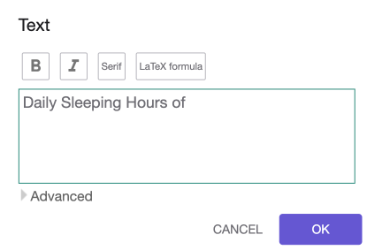

[center][i][/i][/center][size=100][left][i][/i][i]Figure 5[/i][/left][/size] — *Figure 5*

Optional

If you want to add other texts, such as title or additional explanations, you can use the Text tool. Click first in the Graphics view,

Click the Move tool and adjust the position of the text.

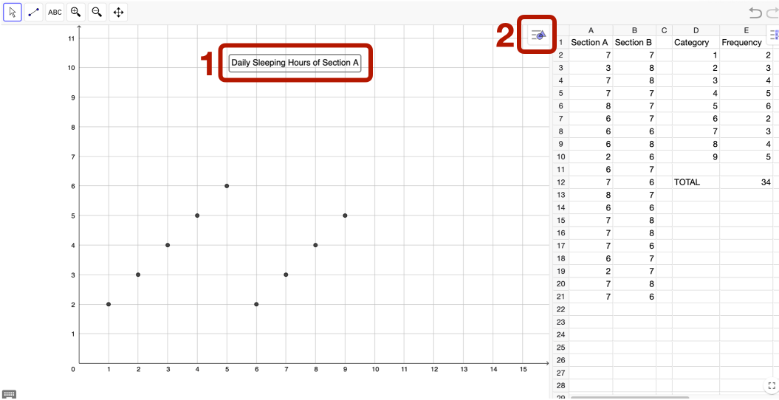

To change the style of your text, click the text you want to customize and click Style menu. (See Figure 4)

To change the style of your text, click the text you want to customize and click Style menu. (See Figure 6)

[center][i][/i][/center][size=100][center][i][/i][i]Figure 6[/i][/center][/size] — *Figure 6*

Constructing a Line Graph

Optional

Optional
