GeoBasics 2

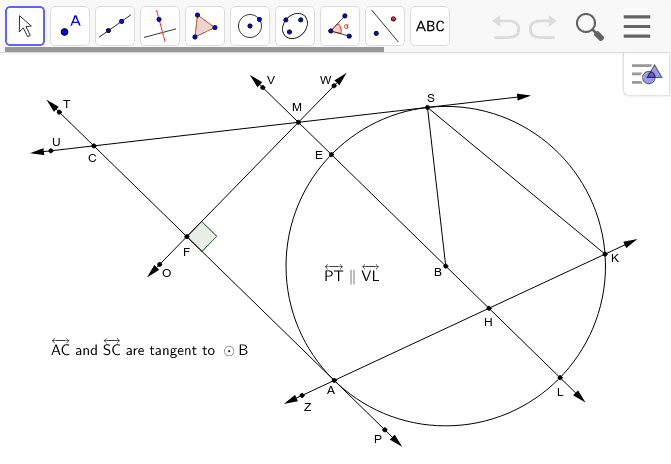

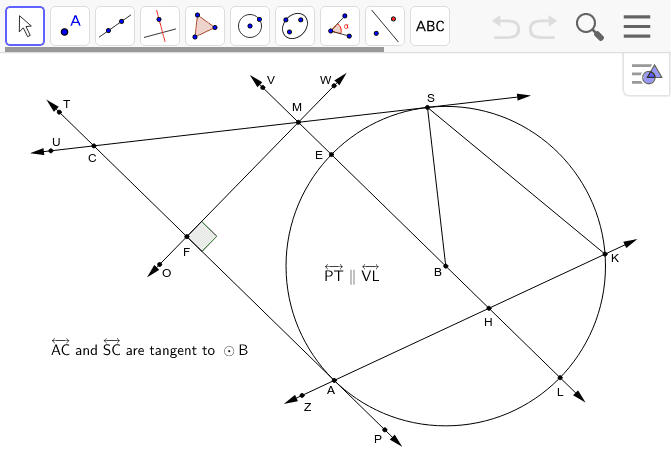

Answer the questions below the diagram using your understanding of the learning targets, and GeoGebra tools.
GeoBasics: I can explain and use the basic terminology of geometry
- GeoBasics1.1: I know the four, undefined terms: point, line,plane, solid and can use them as the basis of geometric proofs (G.PL.1)(G.PL.3) (G.LP.1)
- GeoBasics1.2: I explain and can use the following terms: segment, ray, intersection, parallel and perpendicular lines, vertical and adjacent angles, interior and exterior angles, complementary and supplementary angles, angle and segment bisectors, right angle, transversal, equidistant, congruent (G.PL.3)
GeoCircles: I can explain and use the basic terminology of circular geometry
- GeoCircles1.1: I can identify, explain and use and use the following parts of a circle: radius, diameter, circumference, area (G.Cl.1)
- GeoCircles1.2: I can identify, define and use the following constructions on a circle: arc length, chord, secant, tangent, central, inscribed and circumscribed angles, sector (G.Cl.1) (G.Cl.2)
GeoBasics1.2
1. Select all the angles complementary to WMS
GeoBasics1.2
2. Select all the angles supplementary to HAP
GeoBasics1.2
3. Select all the angles complementary to SBV
GeoBasics1.2
4. Select all the angles complementary to BHA
Select all that apply
- A
- B
- C
- D
- E
GeoBasics1.2
5. Select all the angles supplementary to CMF
GeoBasics1.2
6. Select the Alternate Interior Angle to BHA
GeoBasics1.2
7. If the mFMU is 30°, select the mFCM
GeoBasics1.2
8. If the mFCM is 40°, what is the mVBS
GeoBasics1.2
9. Explain how you selected the mVBS (from the previous question, #8)
GeoBasics1.2
10. If the mTCU is 60°, select the mVBS
GeoBasics1.2
11. Select the Alternate Exterior Angle to TCU:
GeoBasics1.2
12. Select all the angles congruent to BSU
