Oven Door Example

Author:William Haynes

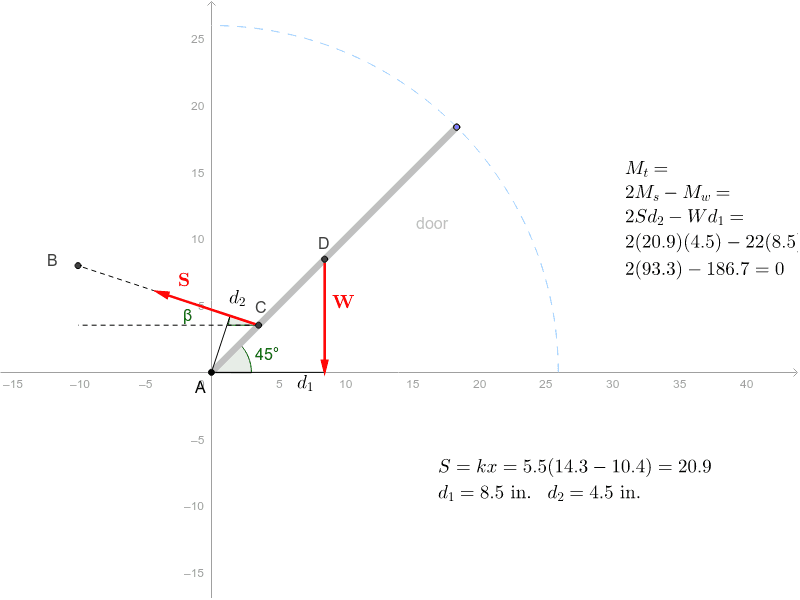

The oven door is supported by two identical springs, and a hinge at point A. Determine the force needed in each spring if the resultant moment about point A of the weight and the spring forces is zero when angle α is 45°.
