Dashboard Calculus

Author:talljerome
Topic:Calculus
It would be a shame for a Calculus student to get behind the wheel of a car and not even realize that their favorite subject is on full display right there on the dashboard. The speedometer gives velocity as a function of time while the odometer gives displacement (i.e. change in position) as a function of time. As long as velocity0 over the entire trip, "displacement" may also referred to as "distance traveled." Okay, technically a car's speedometer gives a reading of speed , not velocity . Check "allow neg v(t)" to let this virtual speedometer lower into negative values. This activity is not particularly attentive to the distinction between speed and velocity at times, but the difference is worth a deeper conversation in a Calculus class. In the interactive dashboard below, press "start," drag the red point on the speedometer needle throughout the car trip, and press "stop" when finished with your trip. Examine how displacement may be viewed as the "area" bounded by the velocity curve and the t-axis. If you allow the velocity to become negative, then equal quantities of "negative area" and "positive area" will offset each other. As class activities, consider:
  • Have one person narrate a story while another person drags the speedometer needle accordingly (e.g. "You drive through a residential neighborhood, you see a stop sign, you enter the highway,...").
  • See who can come up with the best estimate of the distance traveled by approximating the area between the velocity curve and the t-axis. Check the "odometer" box and compare estimates.
Use "guess average" to predict what might be considered the average velocity over the time interval. Drag the pink point up/down to make your guess. You may alternatively select the pink point and press up/down arrows on a keyboard. Press Ctrl at the same time as the arrow key to increase the increment. Check the "actual average" box to show what the true average velocity is over the course of the trip. Consider leaving the "actual average" displayed during a car trip. Discuss how the instantaneous velocity (current speedometer reading) influences the average velocity at any given time. In older devices, the construction may run poorly inside a web browser. In such cases, consider downloading the GeoGebra file and opening in the standalone GeoGebra app.

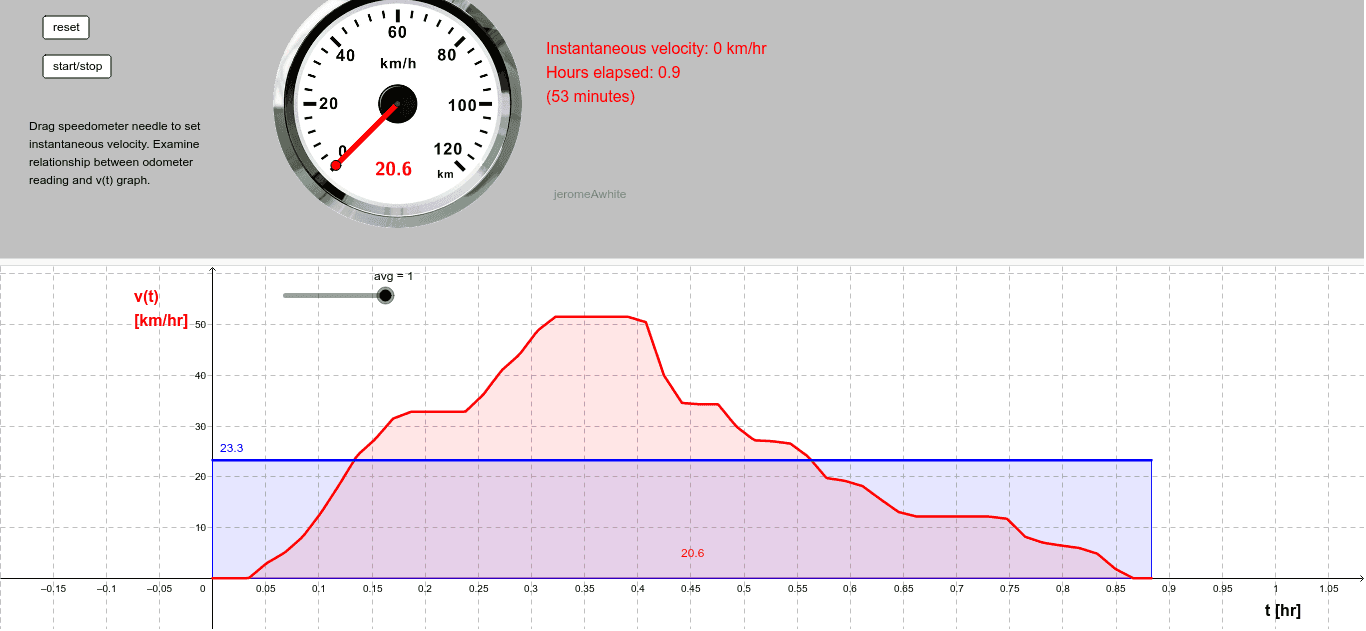

Interactive Dashboard

Displacement vs. Distance Traveled

The first paragraph mentions that "displacement" is the same as "distance traveled" when velocity 0 over an entire trip. How does "displacement" differ from "distance traveled" when velocity 0 for at least part of the trip? If you don't know for sure, please make your best guess.

Check my answer

Area Under the Velocity Curve

The text above mentions that displacement may be viewed as the "area" bounded by the velocity curve and the t-axis. Restate this point using the vocabulary of Calculus. Make a similar statement about distance traveled using the vocabulary of Calculus. On paper you should be able to write corresponding equations using Calculus symbols. (Unfortunately you are not allowed to enter all the necessary symbols here.)

Check my answer

Average Velocity

When using the pink point to approximate average velocity, explain in your own words how you estimated where the horizontal average velocity curve should be positioned.

Check my answer

Mean Value Theorem for Integrals

At the point in a Calculus course where you might encounter this activity, you are probably already familiar with the Mean Value Theorem (MVT) for Derivatives. Something about the slope of a tangent line equaling the slope of a secant line if certain conditions are met, right? It yields this equation: Have you been introduced yet to the Mean Value Theorem (MVT) for Integrals? If so, what does it say? How is it related to the MVT for Derivatives?

Check my answer

Cusps on the v(t) curve?

As technical point: It's worth noting that in this model, cusps ("sharp points") occur on the velocity curve every time velocity changes. Why would it be conceptually problematic in the "real world" for a velocity curve to have cusps?

Check my answer
