Multi variable functions

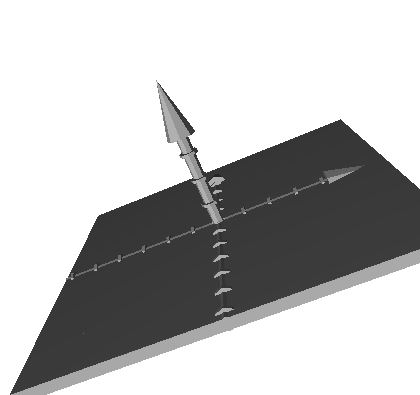

Another problem I found when trying to export to STL and 3D print was that the functions ended up being zero-thickness objects so they do not appeared in the STL files.

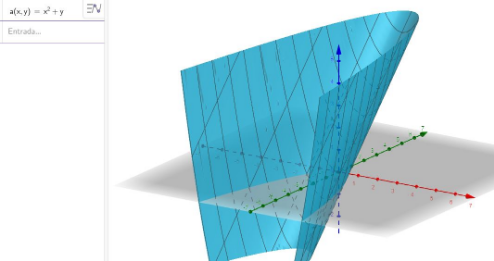

For example the function that you see below does not appears in the STL export.
f(x,y)=x^2+y
Solution:
This was also solved with a little trick:
We are going to create a simple parametric curve and once again with the surface command we will be able to create a surface that appears in the STL export.
We are going to treat our function as parametric curve using the parametrization: and the surface command:

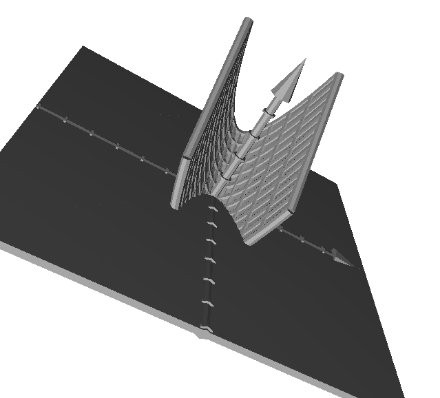

Surface(r , t, f(r,t) , r , -2 , 2 , t , -2 , 2) Getting the following STL export:
