Review Problem 3

Autore:William Haynes

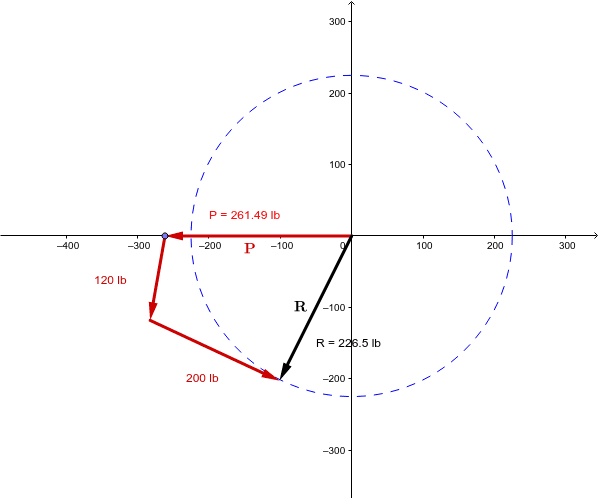

Determine the range of values for P for which the resultant of the three forces applied at A does not exceed 225 lb. Adjust magnitude of force P to keep tip of resultant vector R inside the circle of radius 225 lb.
