Problem 3.56

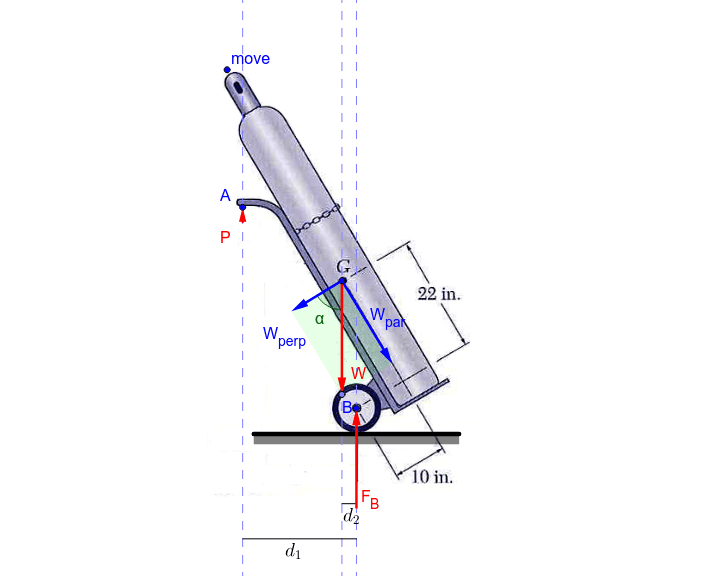

A hand truck is used to move a nitrogen cylinder. Knowing that the combined weight of the truck and cylinder is 180 lb, determine the vertical force P which should be applied to the handle to maintain the cylinder in position, and the corresponding reaction at each of the two wheels, knowing that α = 60° and = 18".
